Our Product
We Provide Product
Concrete Mixer
WM 300|WM 700|WM 800|Custom

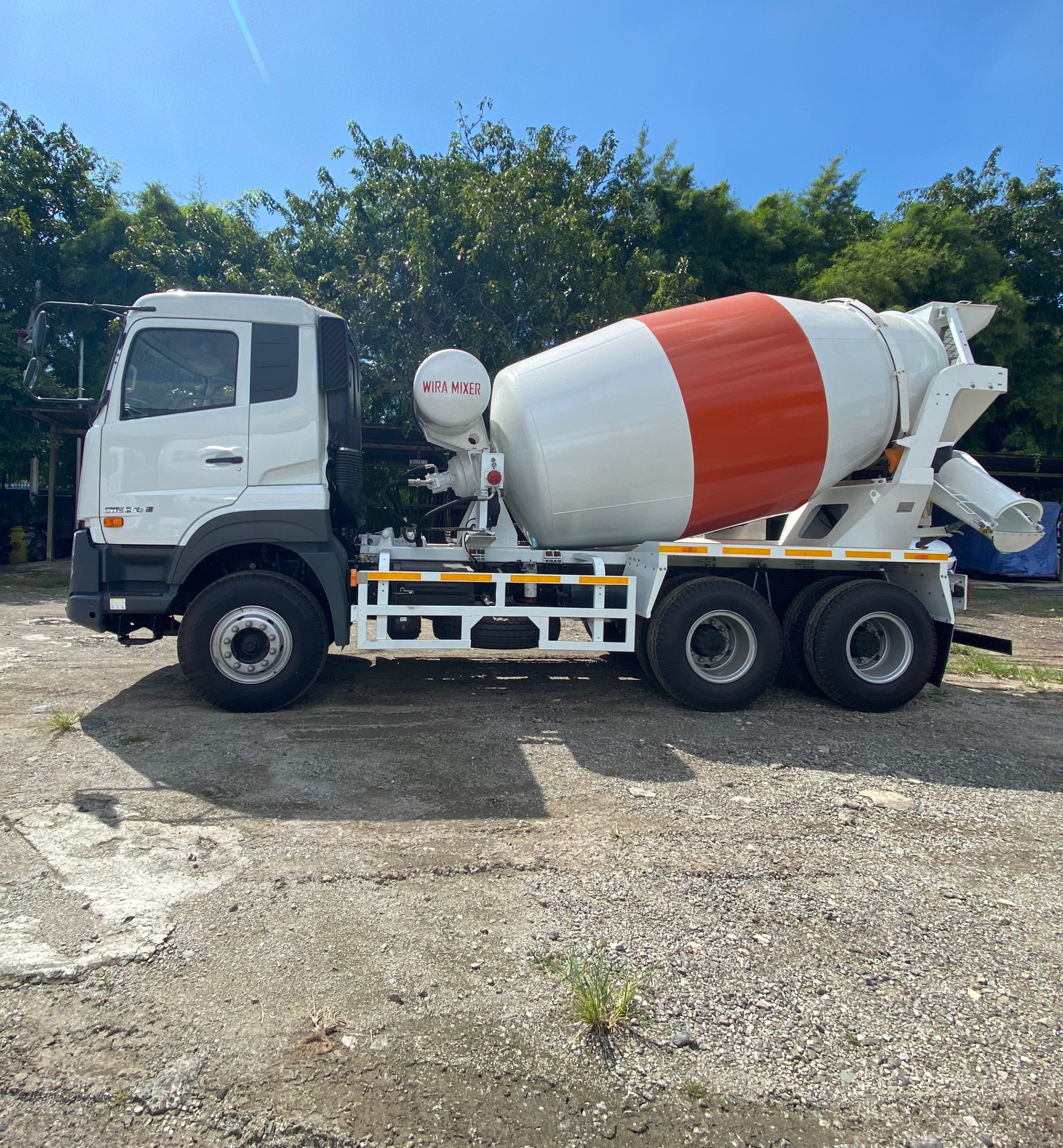

A truck mixer is a specialized vehicle designed for transporting and mixing ready-mix concrete from batching plants to construction sites. Equipped with a rotating drum, it ensures the concrete remains homogeneous and workable during transit.
Technical Specification
| Specification | WM300 | WM700 | WM800 | Custom | Specification | WM300 | WM700 | WM800 | Custom |
|---|---|---|---|
| Drum Volume | 5,9m3 | 12m3 | 13,3m3 | Agitating Capacity | 3m3 | 7m3 | 8m3 |
| Mixing Capacity | 2,5m3 | 6m3 | 8m3 | Drum Inclination | 15 |
| Drum Revolution | 5-18 RPM | Water Tank Capacity | 400L | 600L | 600L |
| Water Flushing System | Pump | Pneumatic | Pneumatic | Speed Reducer | PMB 6.5 |
| Hydraulic Pump | PMH P90 | Hydraulic Motor | PMH M72 |
| Oil Cooler | YS-18L | Dimension | 2800x1900x2400mm | 4300x2200x2400mm | 4300x2200x2400mm |
| Total Weight | 1650 KG | 3050 KG | 3050 KG |
Request a Quotation
